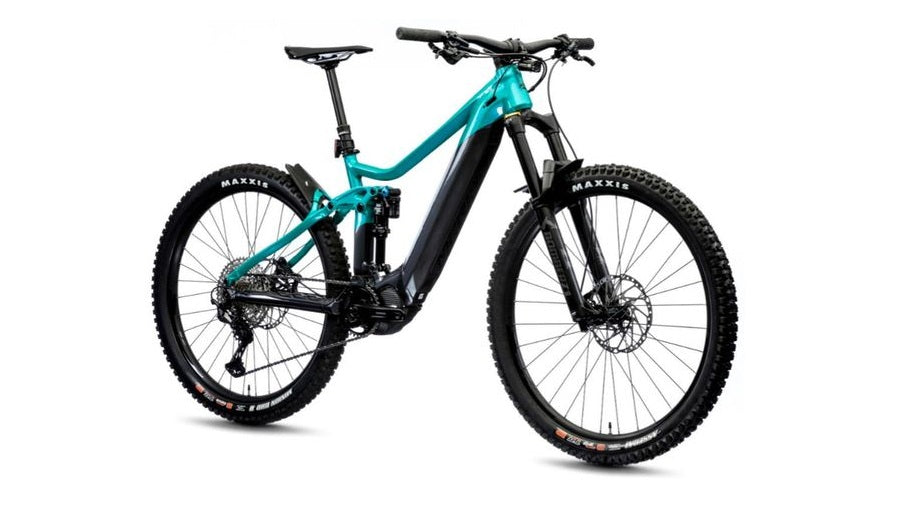

The Merida eONE-SIXTY 700 is a high-performance enduro full-suspension electric mountain bike, built for aggressive trail riding, enduro racing, and all-mountain adventures. Equipped with the award-winning Shimano EP8 motor (85Nm torque) and a long-lasting 630Wh integrated battery, it delivers powerful pedal assistance with natural ride feel.
Designed with modern geometry, 150mm rear travel, and a 160mm suspension fork, this e-MTB offers precise control, climbing efficiency, and downhill confidence. The mullet wheel setup (29” front / 27.5” rear) provides excellent rollover capability in the front and agile handling in the rear, ensuring maximum traction and maneuverability on technical terrain.
Key Features:
Motor: Shimano EP8, 85Nm torque – lightweight, compact, low-resistance mid-drive.
Battery: Shimano E8036 630Wh integrated battery (E8035 504Wh in XS frame).
Charger: Shimano EC-E8004, 4A fast charger.
Display & Controls: Shimano SC-E7000 display, EP8 switch unit.
Frame: eONE-SIXTY LITE aluminium, 150mm travel, 148x12mm Boost axle, Internal Block steering limiter, bottle cage compatible.
Fork: Marzocchi Z1 Ebike+, Air, 160mm travel, tapered, 51mm offset.
Shock: FOX Float DPX2 Performance, platform tuning.
Drivetrain: Shimano Deore M6100 1x12-speed with XT RDM8100 Shadow+ rear derailleur.
Crankset: Shimano FCEM600 165mm with CRE80-12-B, 34T chainring.
Cassette & Chain: Shimano M6100 10-51T, CN-M6100.
Brakes: Shimano SLX 4-piston hydraulic disc brakes with Shimano RT64/RTEM600 rotors.
Wheelset: Merida Expert TR rims, 29mm internal width, tubeless-ready, stainless steel spokes, Shimano SLX hubs.
Tires:
Front: Maxxis Assegai 29x2.5", TR DD 3C MaxxGrip
Rear: Maxxis Aggressor 27.5x2.5", TR DD Dual Compound
Cockpit & Components:
Handlebar: Merida Expert eTR Aluminium, 780mm wide, 20mm rise
Stem: Merida Expert eTRII, 35mm clamp, GoPro/Supernova mount, 40mm length
Seatpost: Merida Expert TR dropper (XS 125mm / S-M 150mm / L-XL 170mm)
Saddle: Merida Expert CC, V-mount
Grips: Merida Expert EC
Pedals: VP VPE-527
Lights & Accessories:
Front: Lezyne E-Bike Power STVZO E115 with custom Merida mount
Rear: USB rechargeable light CG-214RG
Fenders: Merida custom C093-02F + C093-02R
Axles: Merida Expert TR with removable lever (6/4mm Allen key)
Specifications:
Wheel Setup: Mullet (Front: 29", Rear: 27.5")
Suspension Travel: Front 160mm / Rear 150mm
Gears: 12-speed Shimano
Brakes: Hydraulic disc, 4-piston SLX
Maximum Load: Trail-ready up to ~120 kg
Weight: ~24.0 kg
Detailed Description:
The Merida eONE-SIXTY 700 is one of the most decorated e-MTBs in Merida’s history, praised for its enduro race-winning performance and balanced ride quality. The Shimano EP8 motor offers a perfect balance of power and control, while the large 630Wh battery ensures long-distance capability.
The Internal Block steering limiter protects the frame from fork crown impact during crashes, while the mullet wheel setup maximizes stability, grip, and agility. With SLX 4-piston brakes, FOX rear shock, and Marzocchi Z1 fork, this bike is built to handle aggressive descents and steep climbs alike.
Perfect for riders who want a full-suspension enduro e-MTB that can dominate downhill trails, climb technical terrain, and go the distance on epic mountain adventures.
A race-proven, trail-ready electric enduro machine for serious mountain bikers.
